Applications ​

• Powering and power measurements for Pixhawk-compatible flight controllers
• Power distribution to multiple ESCs

Specifications ​

Electrical ​

• Input: 6 V - 60 V (2S - 14S)
• Output: 5.3 V, 3.5 A, overcurrent, overtemperature and short circuit protected
• Distribution current: 60 A continuous, 80 A in burst (please note the current limits of the connectors and wires you intend to use)
• Maximum measurement current: 110 A

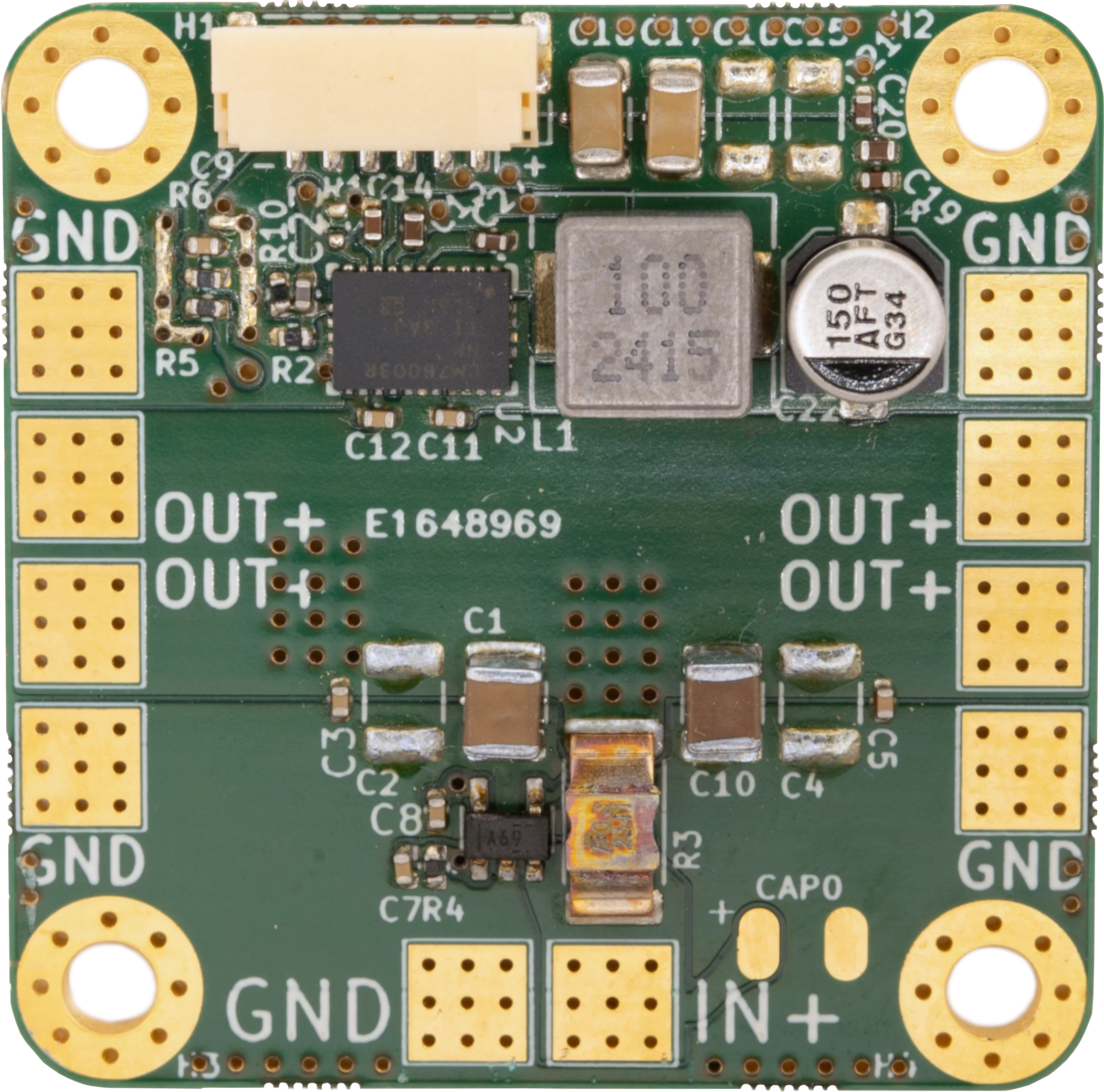

• Connectors:
  • JST GH 6 pin for analog power connection to the flight controller - compatible with the Dronecode Foundation's Pixhawk power connector standard
  • solder pad pair for 5.3 V and GND output
  • 4 solder pad pairs for battery power output

Mechanical ​

• Dimensions: 37.5 x 37.5 x 7 mm
• Mounting: 30.5 x 30.5 mm
• Weight: ~8 g

Compatible flight controllers ​

The following flight controllers are known to be compatible with this power module:

• Holybro Pixhawk 6C/Pixhawk 6C Mini
• mRo Pixracer Pro
• AirMind MindPX/MindRacer

However, any flight controller either compatible with the Pixhawk power connector standard, or capable of accepting +5 V power supply input and analog voltage and current measurements via any other connector or solder pad, should be able to utilize this power module.
